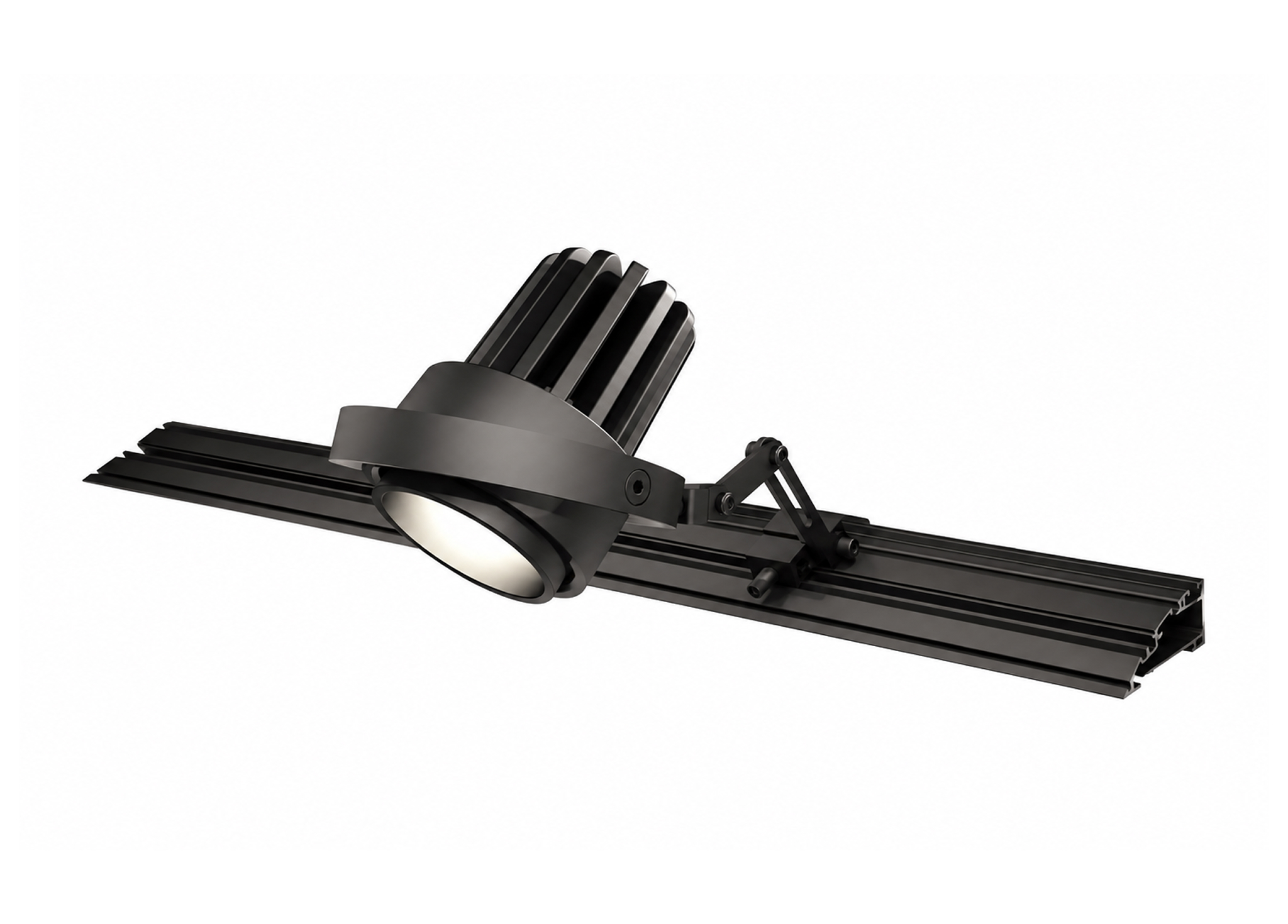

LG-5009 | Adjustable Spot Head for Knife Edge
Knife Edge
Download Files
Quick Info
- Application: New Construction / Remodeling
- Adjustability: Full range of mobility
- Delivered Lumens: 1250lm (13W) / 1610lm (18W) | (3000K Tested)
- CRI: 95 CRI, 2-step SDCM
- Color Temperature: 2700K | 3000K | 3500K | 4000K
- Light Distribution: General | Wall Wash | Spot Light
- Beam Spread: 15° 24° 38° (standard) 60°
- Warm Dim Option: 1800K-3000K | 940 Im (13W) / 1300lm (18W)
- Tunnable White Option: 2700K-6500K | 910lm (13W)
- Input Voltage: 120V / 120-277V
- Module Rating: Damp Location
- Guarantee: 40,000 hrs | 3 years
Dimming:
• TRIAC/ELV (120V only) *Standard / (120-277V) Optional
• DALI 2(DT6/DT8) (100 – 240V)
• 0-10
• Lutron EcoSystem
• DMX dimming, >0.01% for Tunable White (100 – 240V)
• 2x(0-10) dual for tunble white
Arm:Adjustable Spot Head
Additional Arm Color:White
Material:Aluminum material / Black powder coated
