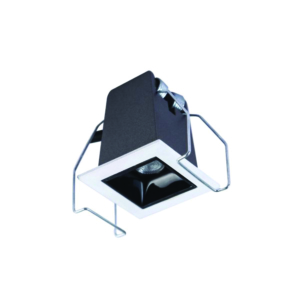

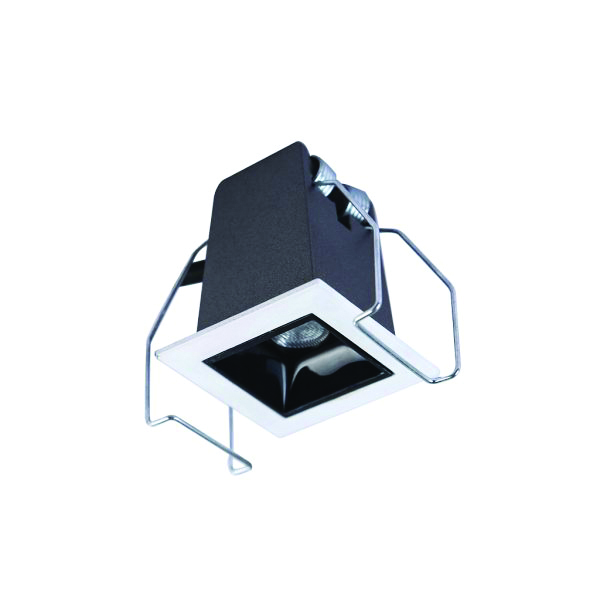

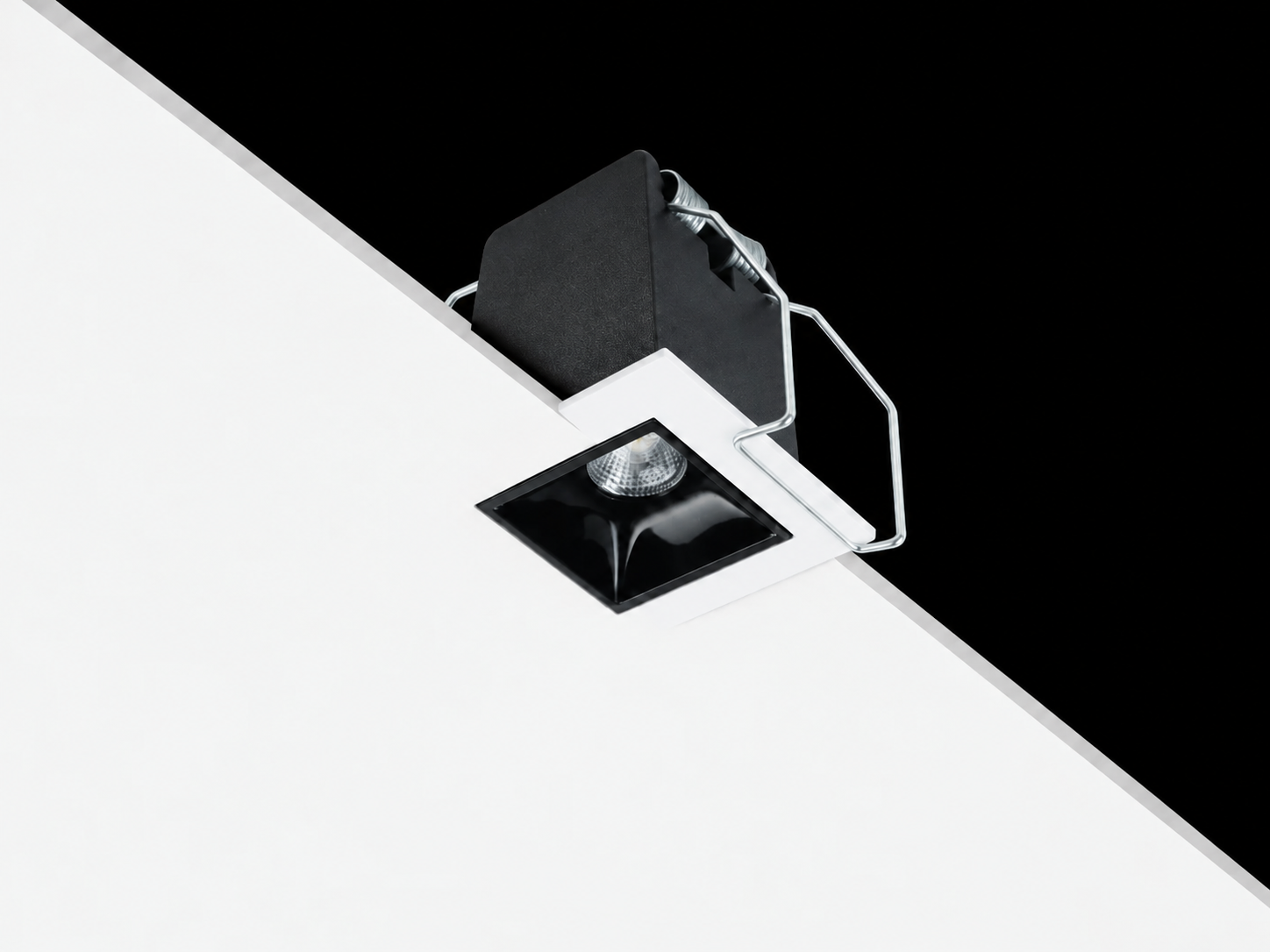

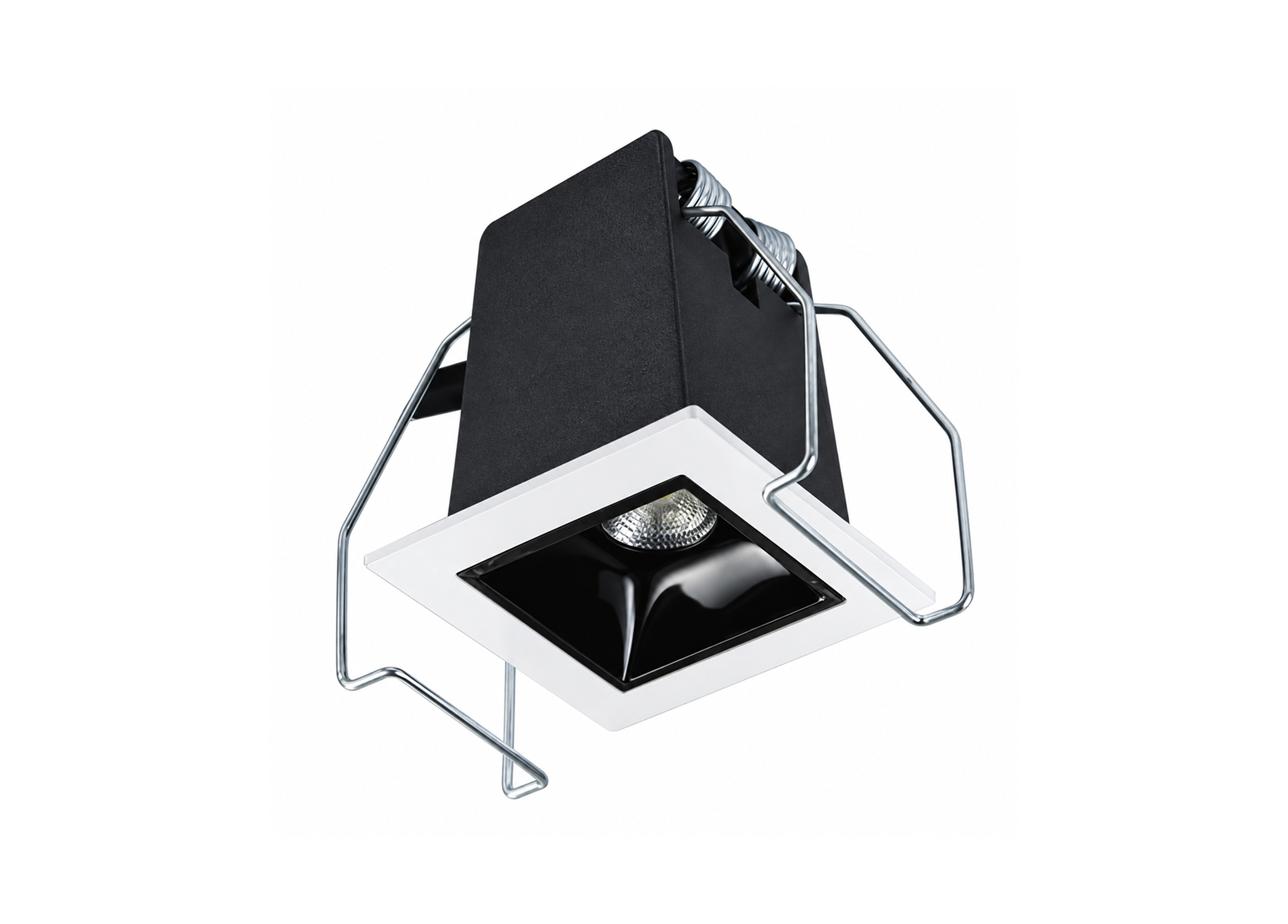

LG-7001 | Single cell narrow recessed downlight LED
Narrowline
Download Files
Quick Info
- Application: New Construction / Remodeling
- Trim Material: Slim Trim - Aluminum powder coated
- Junction Box: IC Rated - REMOTE
- Delivered Lumens: Black Bevel - 162lm (2W) 1x2W | White Bevel - 203lm (2W) 1x2W
- CRI: 95 CRI, 2-step SDCM
- Color Temperature: 2700K | 3000K | 3500K | 4000K | 5000K | 6500K
- Light Distribution: General
- Input Voltage: 120-277V
- Module Rating: Damp Location
- Guarantee: 40,000 hrs | 3 years
Dimming:
- 5-1 Dimming LED Driver Triac
- 0-10V
- 1-10V
- Potentiometer
- 10V PWM AC Input voltage range: 100-277VAC
