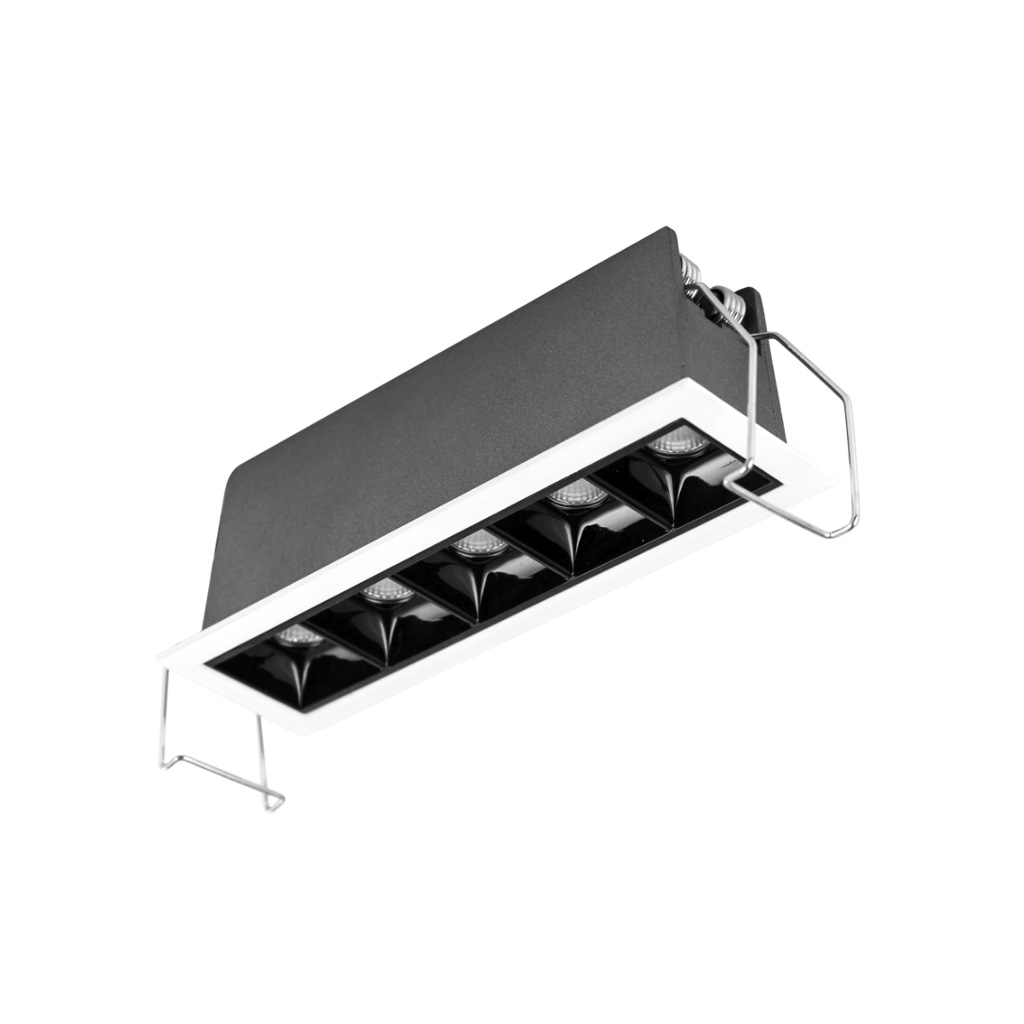

LG-7005 | Multiple 5 cell narrow recessed downlight LED
Narrowline
Download Files
Quick Info
- Application: New Construction / Remodeling
- Trim Material: Slim Trim - Aluminum powder coated
- Junction Box: IC Rated - REMOTE
- Delivered Lumens: Black Bevel - 685lm (10W) 5x2W | White Bevel - 856lm (10W) 5x2W
- CRI: 95 CRI, 2-step SDCM
- Color Temperature: 2700K | 3000K | 3500K | 4000K | 5000K | 6500K
- Light Distribution: General
- Input Voltage: 120-277V
- Module Rating: Damp Location
- Guarantee: 40,000 hrs | 3 years
Dimming:
• 5-1 Dimming LED Driver Triac
• 0-10V
• 1-10V
• Potentiometer
• 10V PWM AC input voltage range: 100-277 VAC
• DALI 2 DT6 – DT8
• Lutron EcoSystem
