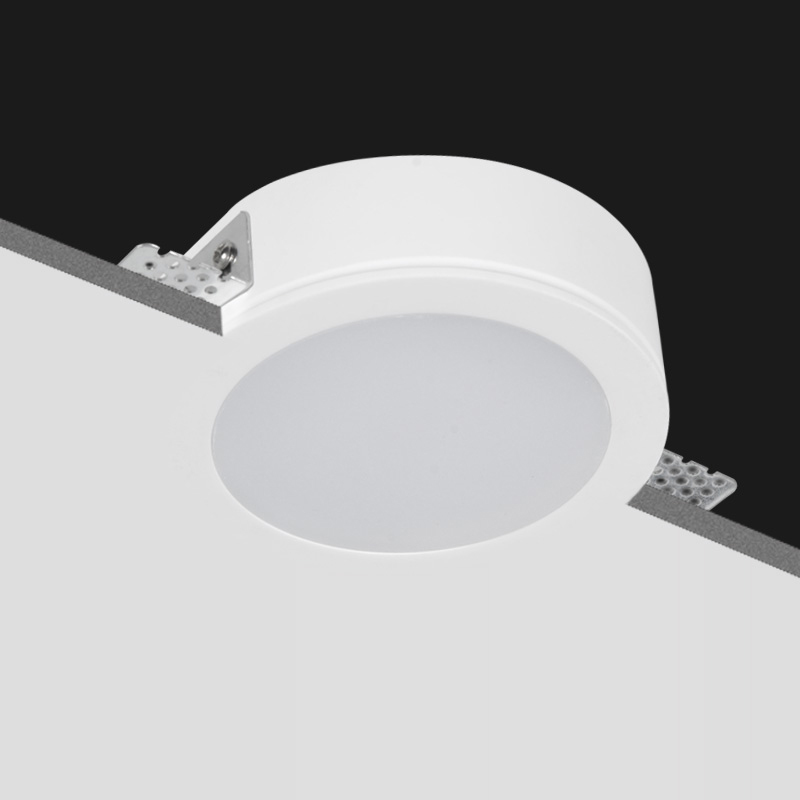

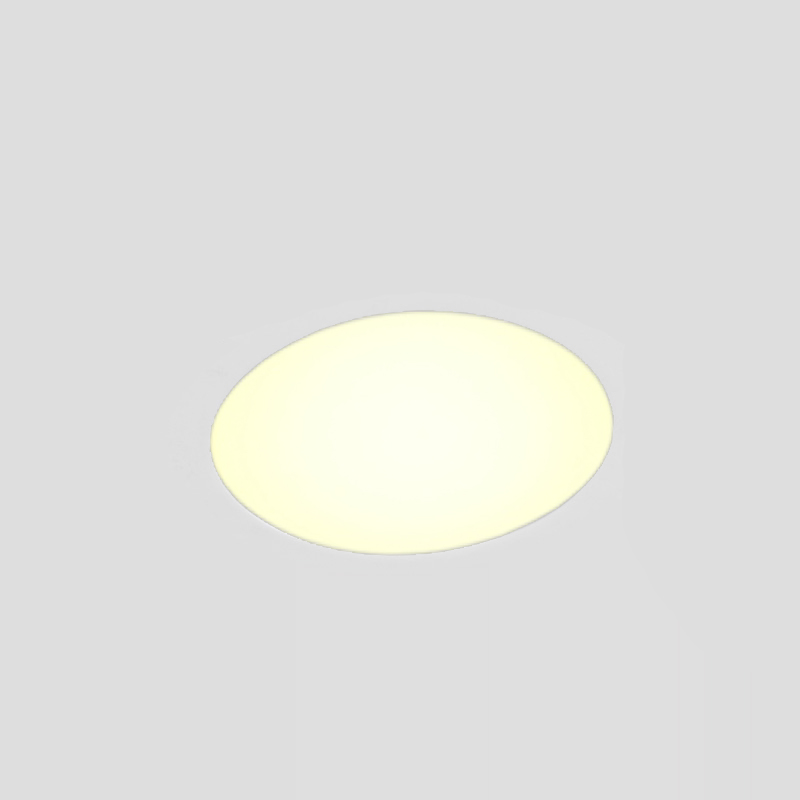

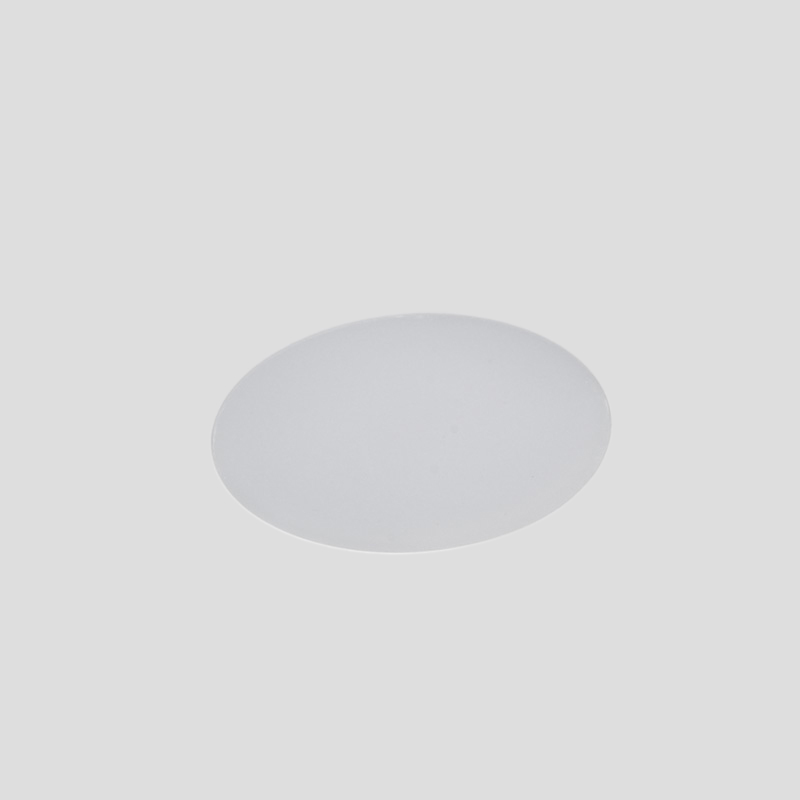

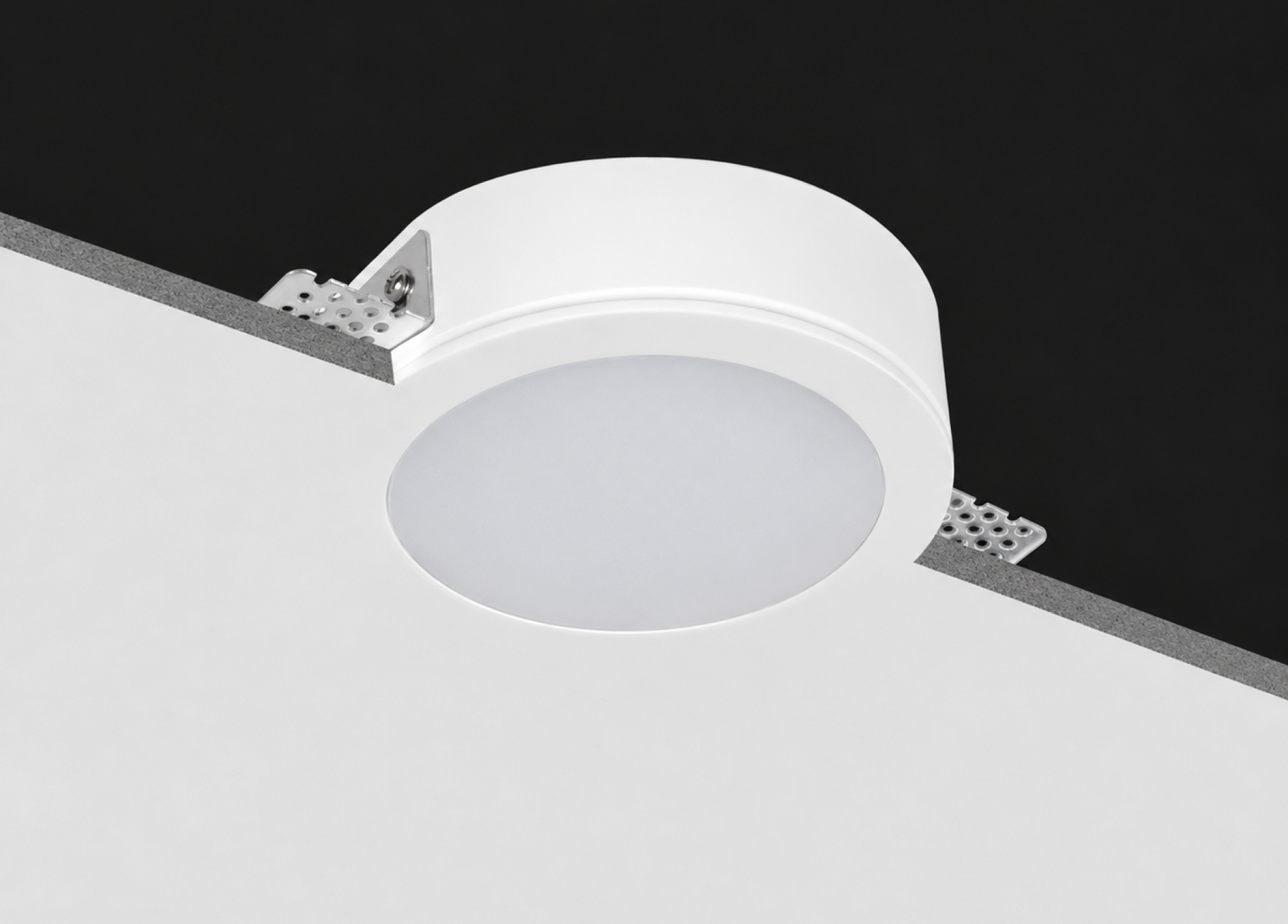

LG-8016 | (4") Trimless plaster LED - Round | Light & Green

LG-8016 | (4″) Trimless plaster LED – Round

Harmony Focus

Download Files

Quick Info

Application: New Construction / Remodeling
Trim Material: Gypsum Flangless (seamless)
Delivered Lumens: 570lm (9W) 36V 250mA
CRI: 95 CRI, 3-step SDCM
Color Temperature: 2700K | 3000K
Light Distribution: General
Beam Angle: 120°
Input Voltage: 120V / 120-277V
Module Rating: Wet Location
Guarantee: 40,000 hrs | 3 years

Dimming:

• TRIAC/ELV (120V only) *Standard / (120-277V) Optional
(Installed remote or behind fixture in a junction box)
• DALI 2(DT6/DT8) (100 – 240V)
• 0-10
• Lutron EcoSystem
• DMX dimming, >0.01% for Tunable White (100 – 240V)
• 2x(0-10) dual for tunble white
