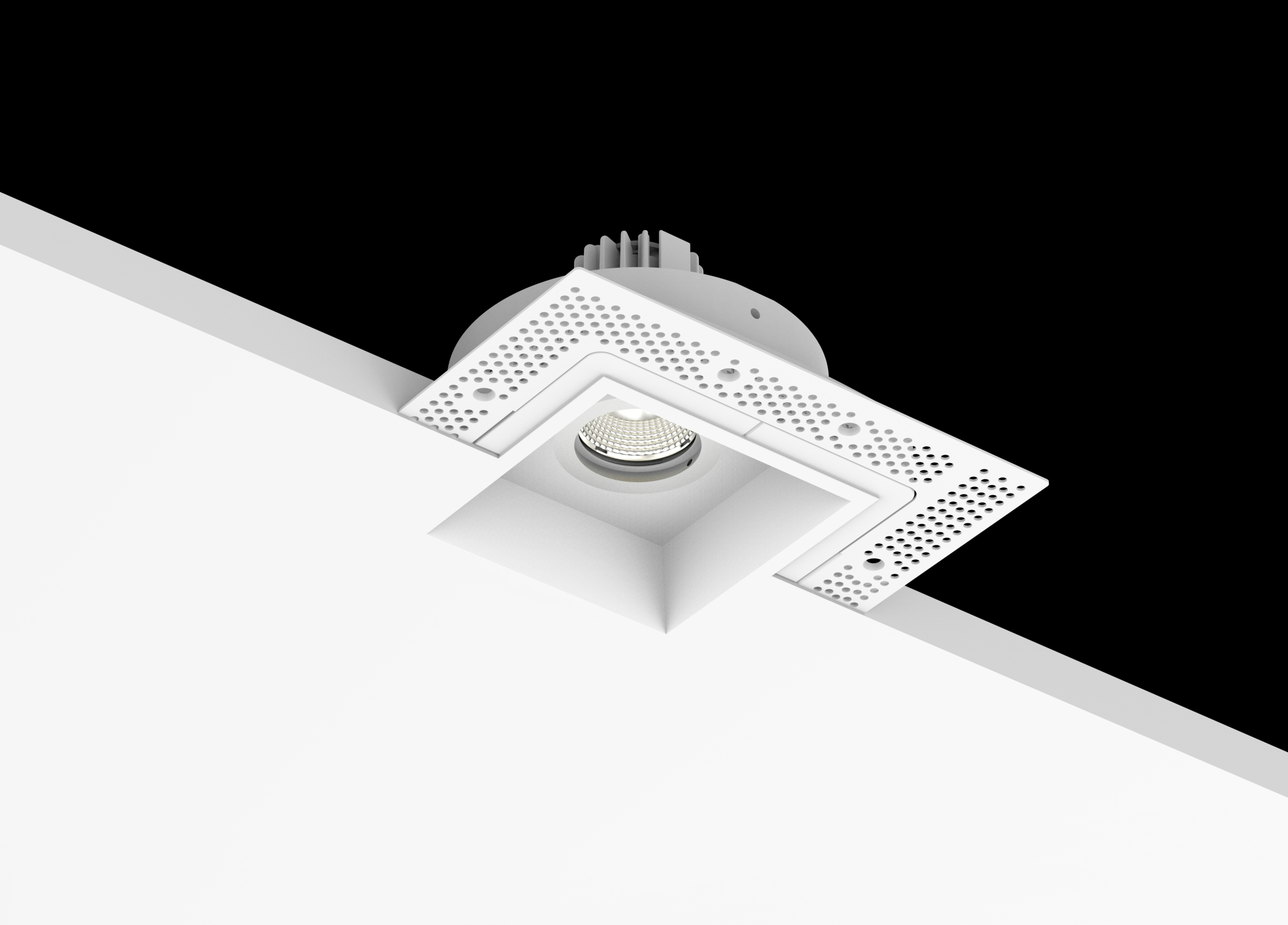

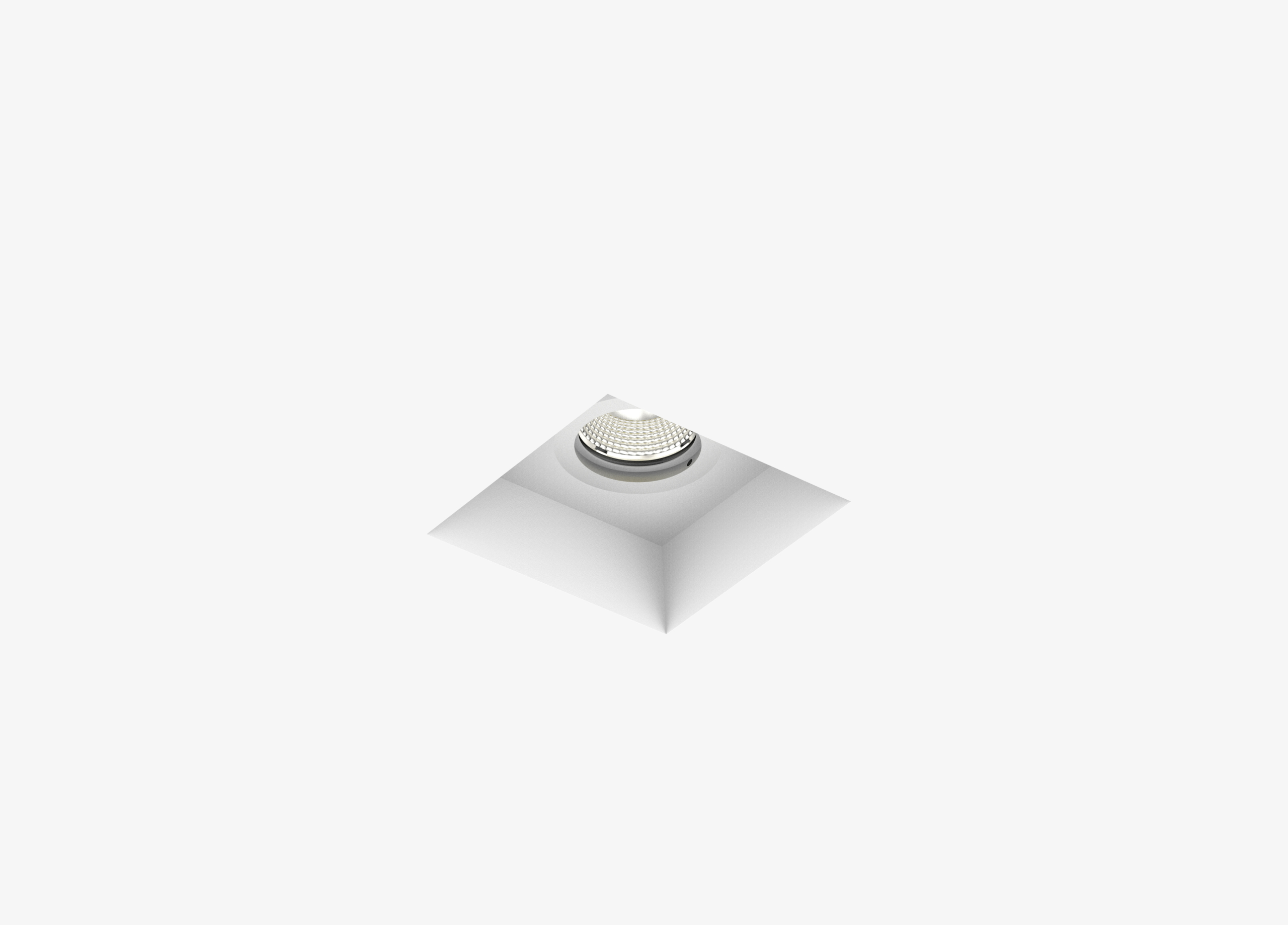

LG-9014 | (4″) Non – Ajustable Square
Harmony Downlight
Download Files
Quick Info
- Application: New Construction / Remodeling
- Trim Material: Gypsum Flangeless (Seamless) | Texturable and Paintable
- Adjustability: Non-Adjustable
- Delivered Lumens: 1250lm (13W) / 1610lm (18W) | (3000K Tested)
- CRI: 95+ CRI
- Color Temperature: 2700K | 3000K | 3500K | 4000K | 6500K
- Warm Dim Option: 1800K-3000K | 940Im (13W) / 1300lm (18W)
- Tunnable White Option: 2700K - 6500K 910lm (13W)
- Beam Angle: 15°, 24°, 38° (standard), 60°
- Input Voltage: 120V / 120-277V
- Module Rating: Wet Location Listed
- Housing Ratings: IC Rated / Air Tight / CCEA / JA8 Listed
Dimming:
• TRIAC/ELV (120V only) *Standard / (120-277V) Optional
• DALI 2(DT6/DT8) (100 – 240V)
• 0-10
• Lutron EcoSystem
• DMX dimming, >0.01% for Tunable White (100 – 240V)
• 2x(0-10) dual for tunable white
