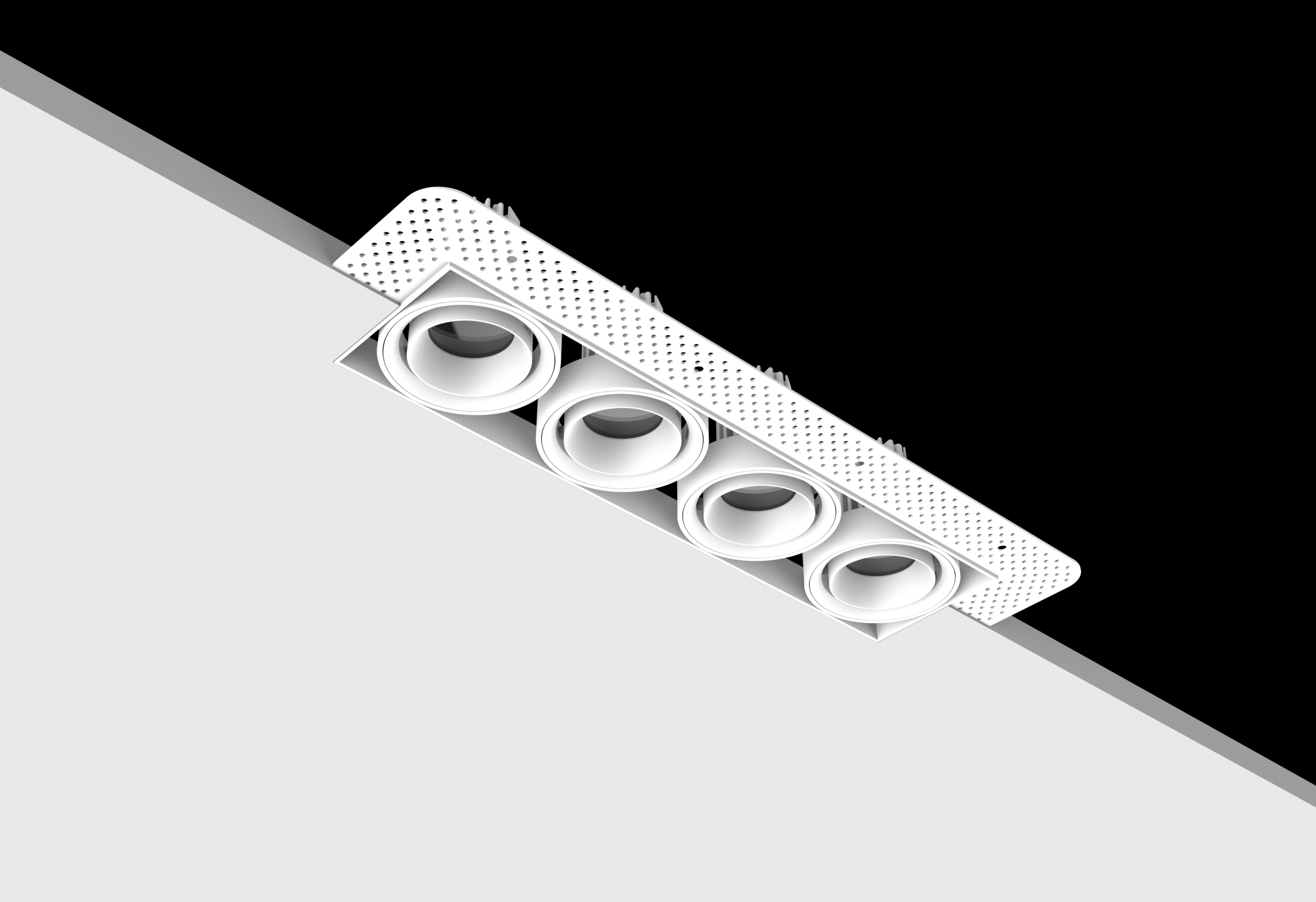

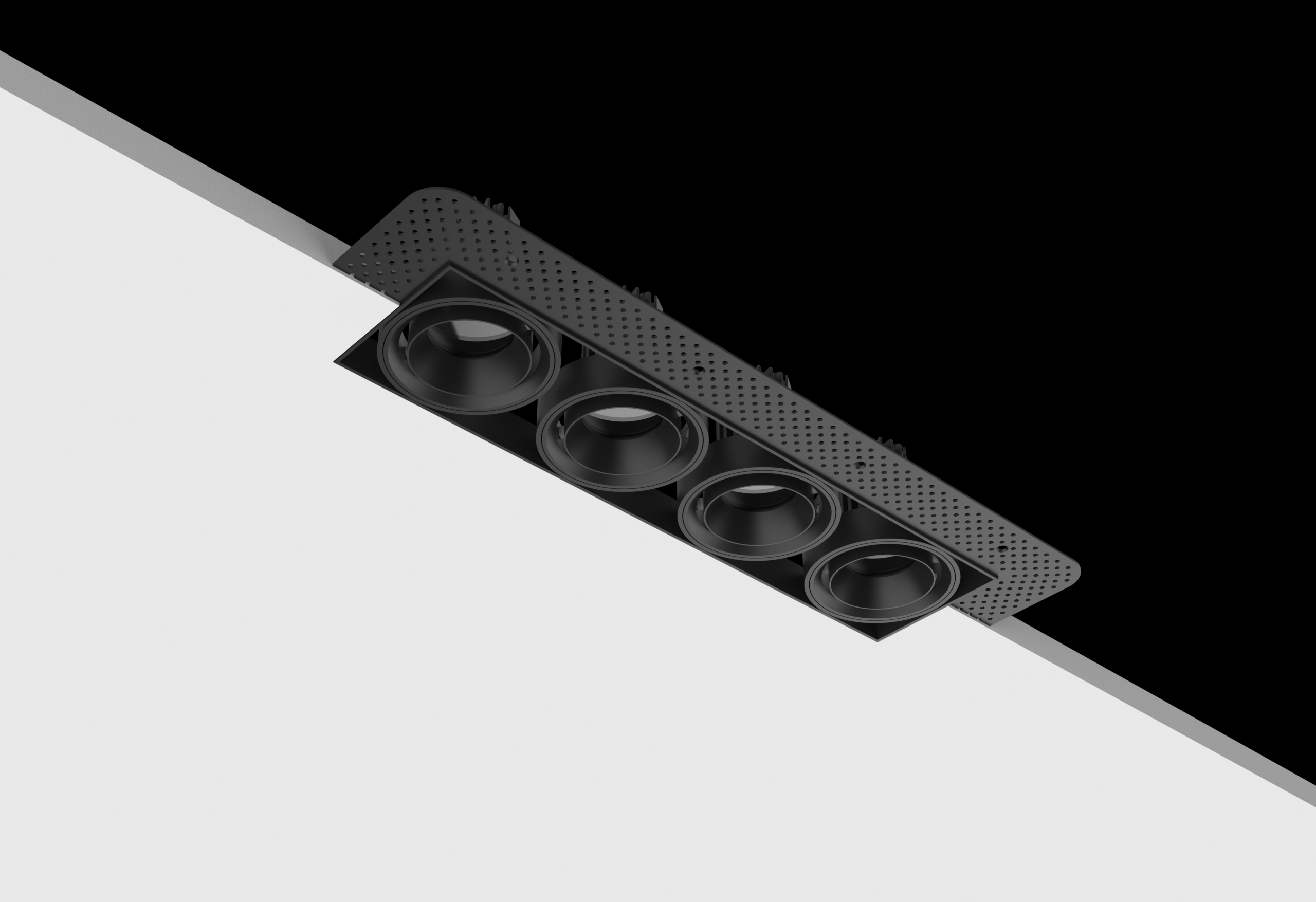

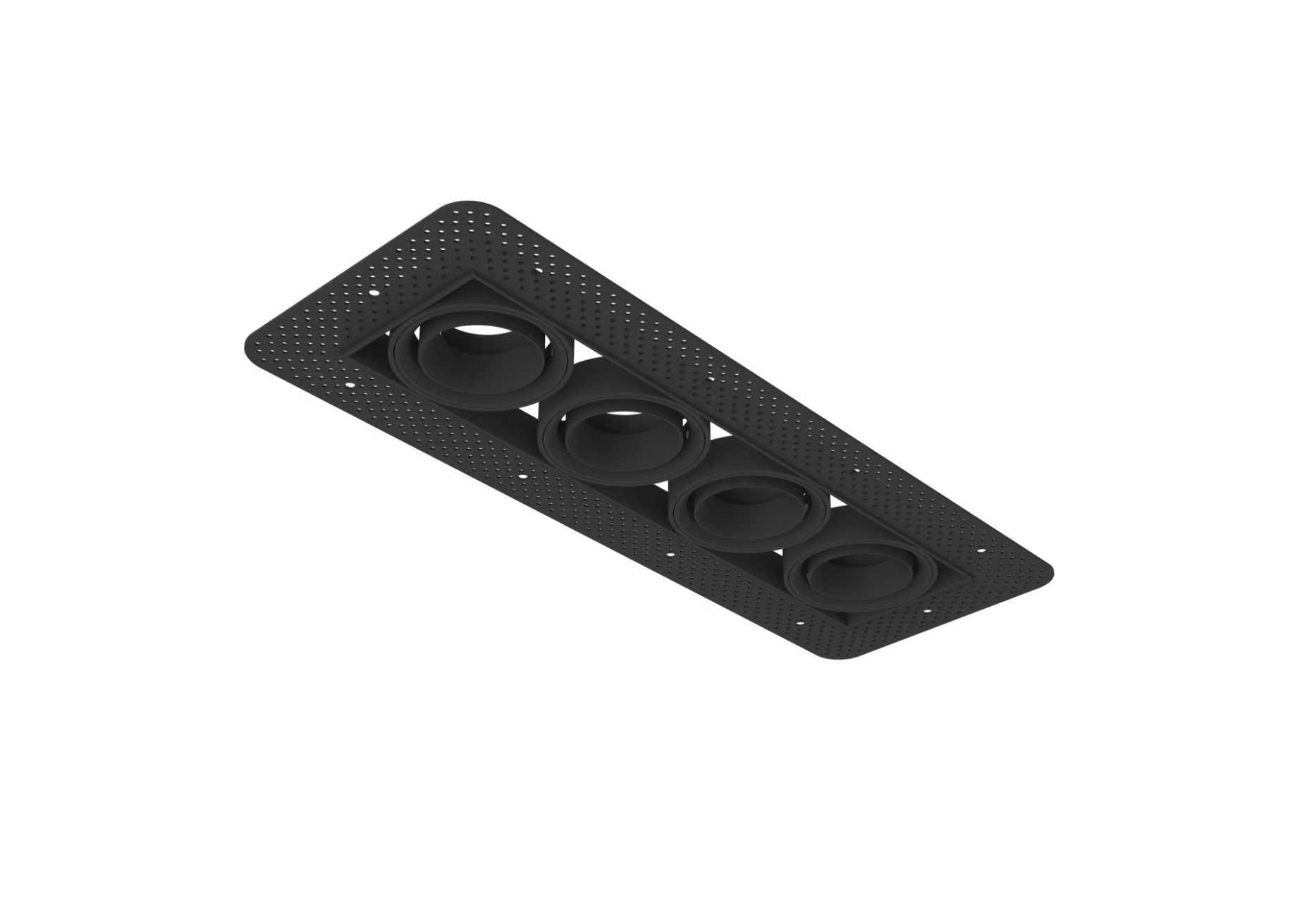

LG-9024 TL (3″) Trimless 3” Adjustable Recessed Downlight LED
Harmony Boost
Download Files
Quick Info
- Application: New Construction / Remodeling
- Trim Material: Gypsum Flangeless (Seamless)
- Adjustability: 35°
- Delivered Lumens: 4x1250lm (13W) / 4x1610lm (18W) | (3000K Tested)
- CRI: 95+ CRI
- Color Temperature: 2700K | 3000K | 3500K | 4000K
- Beam Spread: 15° 24° 38° (standard) 60°
- Warm Dim Option: 1800K-3000K | 4x940Im (13W) / 4x1300lm (18W) (92 CRI)
- Tunnable White Option: 2700K-6500K | 4x910lm (13W) (92 CRI)
- Input Voltage: 120/277V
- Module Rating: Damp Location
- Housing Ratings: IC Rated / Air Tight / CCEA / JA8 Listed
Dimming:
• TRIAC/ELV (120V only) *Standard / (120-277V) Optional
• DALI 2(DT6/DT8) (100 – 240V)
• 0-10
• Lutron EcoSystem
• DMX dimming, >0.01% for Tunable White (100 – 240V)
• 2x(0-10) dual for tunable white
Resources
Spec Sheets
LG-9021 | T (3″) With Trim 3” Adjustable Recessed Downlight LED
LG-9021 TL (3″) Trimless 3” Adjustable Recessed Downlight LED
LG-9021 | W (3″) Wood 3” Adjustable Recessed Downlight LED
LG-9022 | T (3″) With Trim 3” Adjustable Recessed Downlight LED
LG-9022 TL (3″) Trimless 3” Adjustable Recessed Downlight LED
LG-9022 | W (3″) Wood 3” Adjustable Recessed Downlight LED
LG-9023 | T (3″) With Trim 3” Adjustable Recessed Downlight LED
LG-9023 TL (3″) Trimless 3” Adjustable Recessed Downlight LED
LG-9023 | W (3″) Wood 3” Adjustable Recessed Downlight LED
LG-9024 | T (3″) With Trim 3” Adjustable Recessed Downlight LED
LG-9025 | T (3″) With Trim 3” Adjustable Recessed Downlight LED
LG-9025 TL (3″) Trimless 3” Adjustable Recessed Downlight LED
Instruction Sheets
