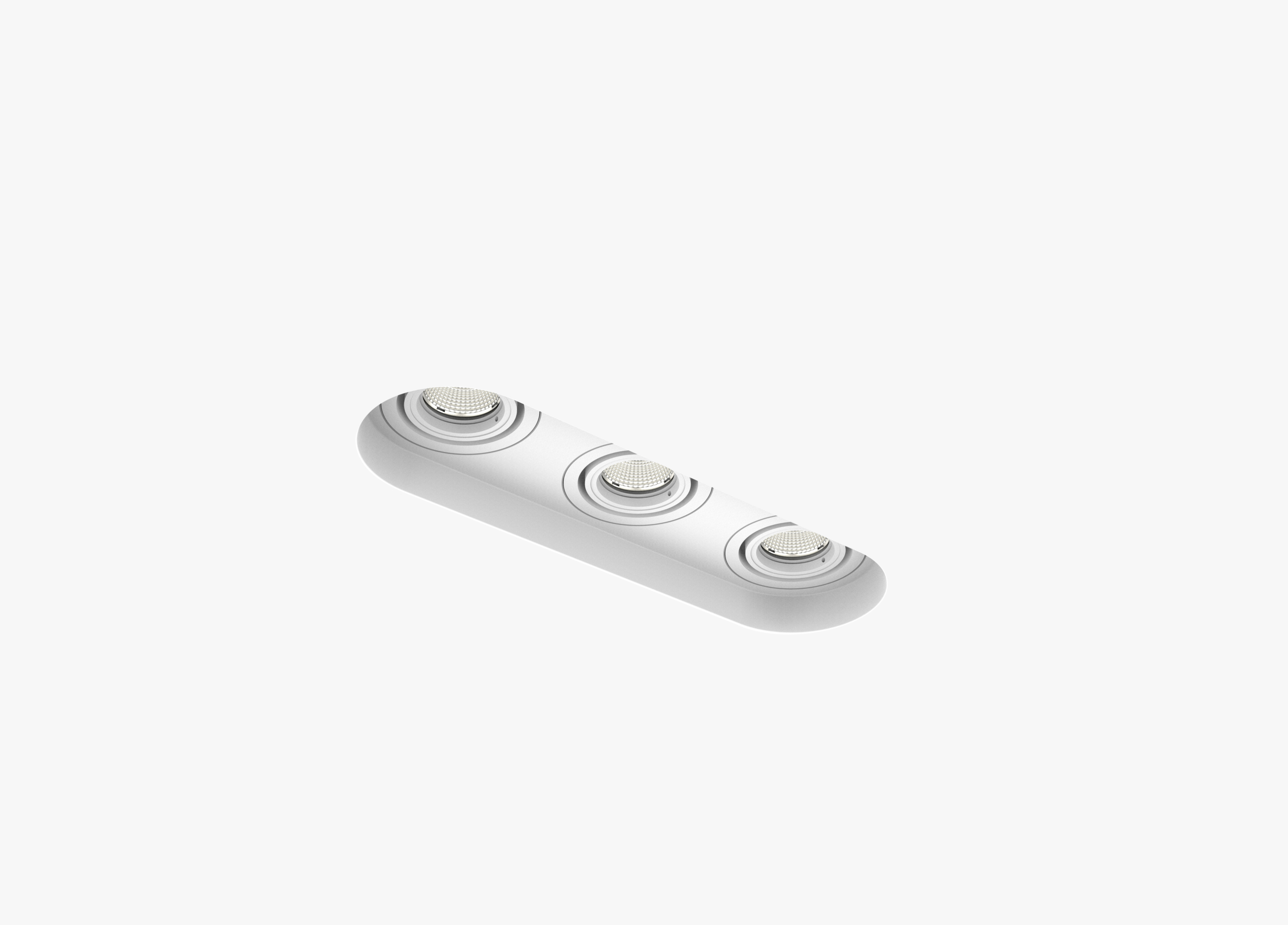

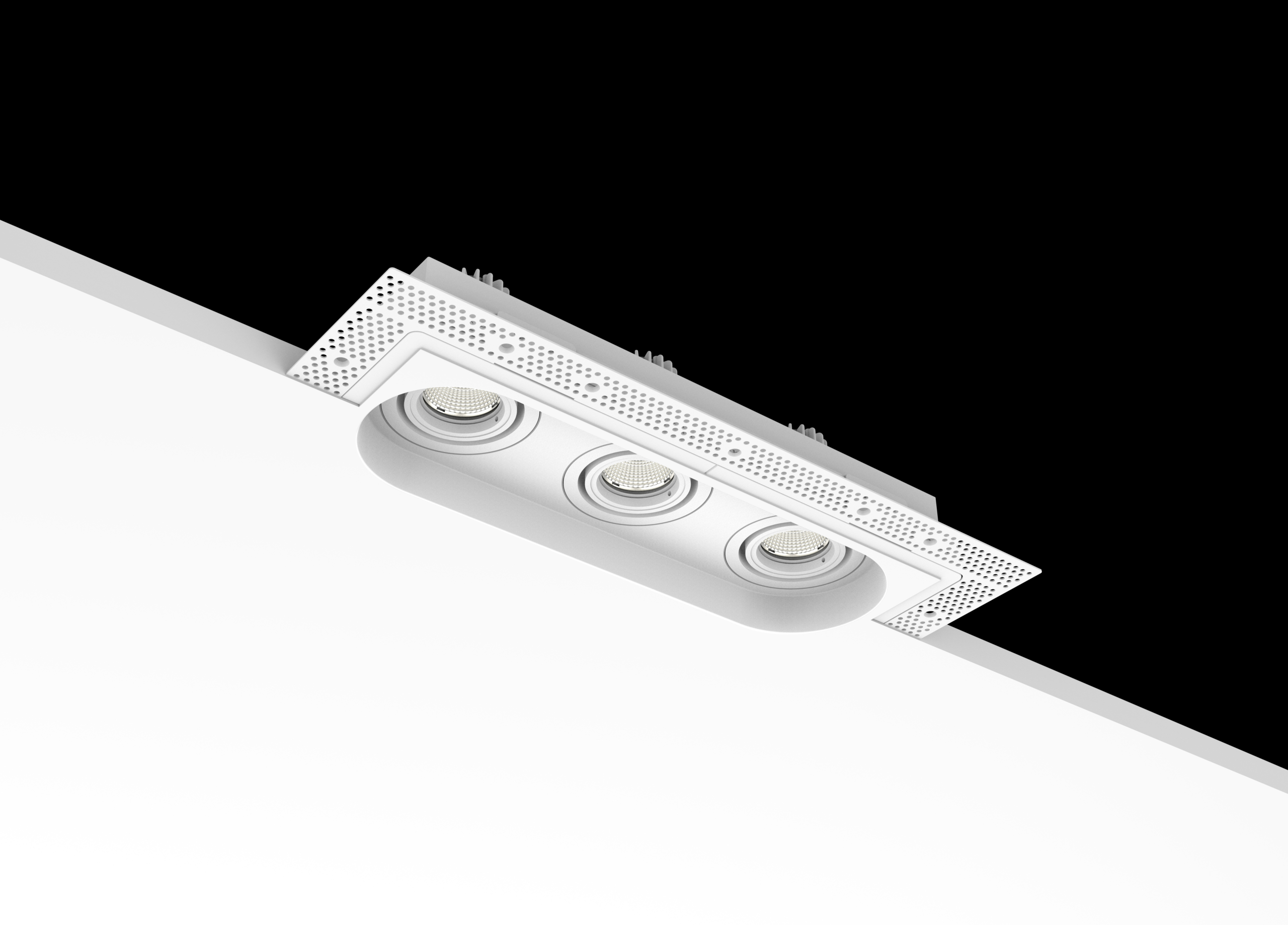

LG-9112A | (4″) Adjustable Double 1×3 Round
Harmony Downlight
Download Files
No record found.
Quick Info
- Application: New Construction / Remodeling
- Trim Material: Gypsum Flangeless (Seamless) | Texturable and Paintable
- Adjustability: 30°
- Delivered Lumens: 3x1250lm (13W) / 3x1610lm (18W) | (3000K Tested)
- CRI: 95+ CRI
- Color Temperature: 2700K | 3000K | 3500K | 4000K
- Warm Dim Option: 1800K-3000K | 3x940Im (13W) / 3x1300lm (18W)
- Tunnable White Option: 2700K-6500K | 3x910lm (13W)
- Beam Angle: 15°, 24°, 38° (standard), 60°
- Input Voltage: 120V / 120-277V
- Module Rating: Damp Location
- Housing Ratings: IC Rated / Air Tight / CCEA / JA8 Listed
Dimming:
• TRIAC/ELV (120V only) *Standard / (120-277V) Optional
• DALI 2(DT6/DT8) (100 – 240V)
• 0-10
• Lutron EcoSystem
• DMX dimming, >0.01% for Tunable White (100 – 240V)
• 2x(0-10) dual for tunable white
